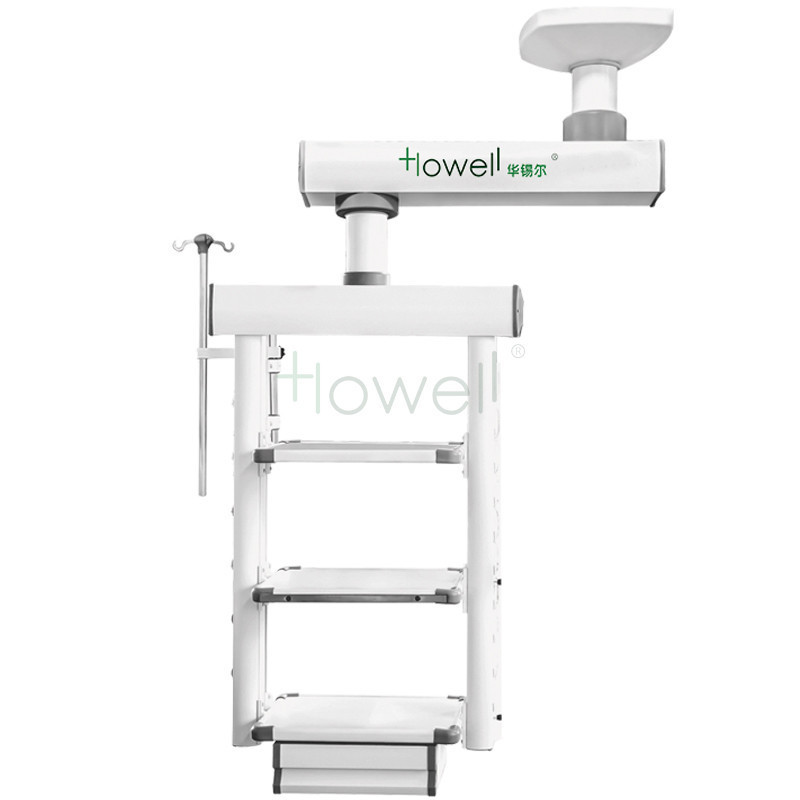

Single Arm Endoscope Pendant HE-K-6

1. Working power supply: AC220V, 50Hz;

2. Range of motion (radius) of transverse arm: 700-1100 mm (can be configured according to the requirements of the hospital) 3. Horizontal rotation angle: 0 ~ 340 °. The transverse arm and terminal box can be rotated horizontally separately or simultaneously;

(4) Net load weight ≥ 80 kg;

5. Instrument platform: 3 layers (adjustable height), 550 mm-400 mm, one drawer

6. Gas interface configuration (national standard 2 oxygen 2 suction 2 empty or according to the hospital configuration): a. The interface color and shape are different, with the function of preventing connection errors;

B. More than 20,000 times of insertion and pulling out;

7. Power sockets: 8, 220V, 10A; 1 network and telephone interface

8. Earth terminal: one;

9. One stainless steel adjustable infusion pole;

(10) The main material shall be high-strength aluminum alloy profiles.

11. Electrostatic spraying is used for surface treatment;

12. Suction top installation, stable and firm.
