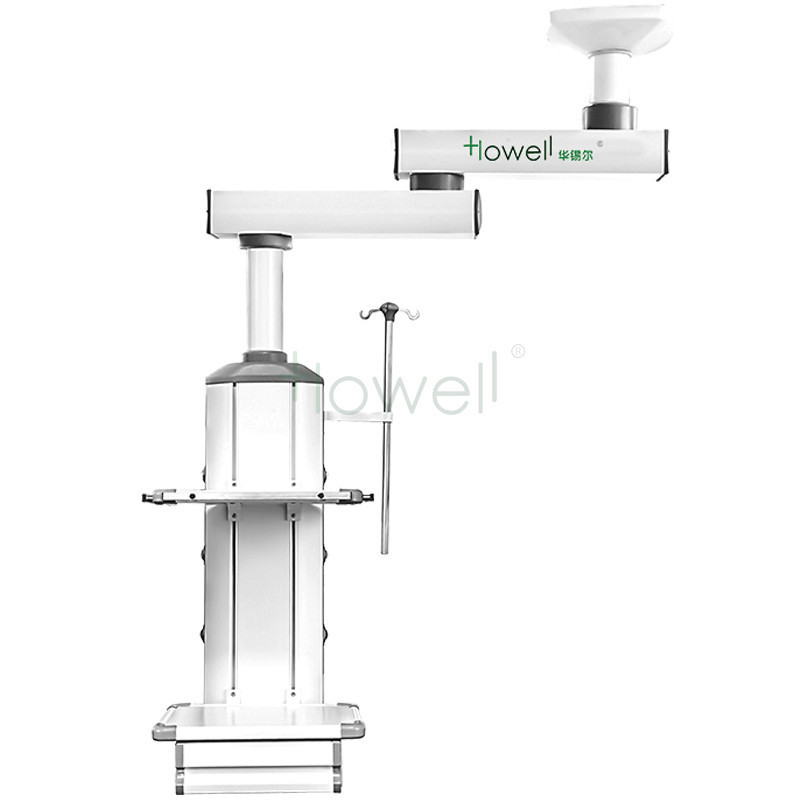

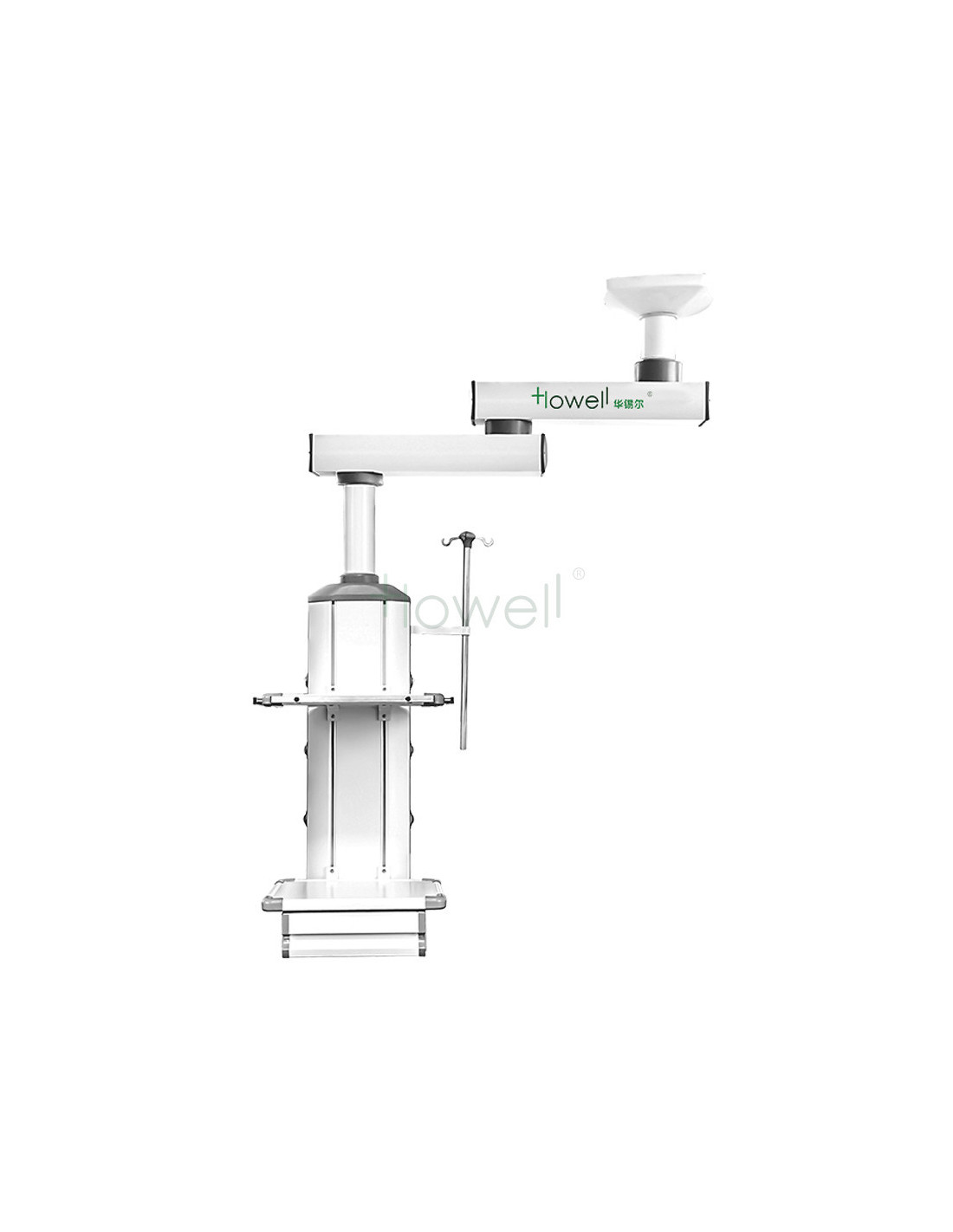

Double Arm Surgical Pendant HE-K-3

1. Working power supply: AC220V, 50Hz;

2. Range of motion (radius) of double transverse arms: 700-1100 mm and 400-600 mm (can be configured according to the requirements of the hospital)

3. Horizontal rotation angle: 0 ~ 340 °, transverse arms and terminal boxes can be rotated horizontally separately or simultaneously;

4. Net load weight ≤ 60 kg;

5. Instrument platform: 2 layers (height adjustable) 550 mm-400 mm, round-angle collision protection design;

6. Gas interface configuration (national standard dioxodisuction can be configured according to the requirements of the hospital):

a. The interface color and shape are different, with error-proof function;

b. The number of insertion and pulling is more than 20,000 times; c. The secondary sealing is adopted, with three states (on, off and pulling);

7. Power socket:

8, 220V and 10A; 1 network and telephone interface;

9. Grounding terminal: 1;

10. One stainless steel adjustable infusion pole;

11. The main material shall be high-strength aluminum alloy profiles;

12. Electrostatic spraying is used for surface treatment;

13. Suction top installation is stable and firm.
