The modular design of the W5 is a major feature, with an emphasis on the expandability of the operating table in order to meet a variety of clinical needs and solve the problem of special posture requirements under different surgical settings. The plates made of hexakis (methoxymethyl) melamine are able to meet the needs for most orthopedic surgeries, while also achieving an X-ray filtration of < 1mmAL. When it comes to quality, we do not compromise. The W5 uses high-quality Grade 304 Stainless Steel that is further treated to provide the entire frame with greater strength and resistance to corrosion. Understanding that the weight limitations of leg plates are a drawback in most operating tables, our R&D team brings to you upgraded leg plat...
Equipment demonstration
We arrange live demos. See the device in action before you decide.
Staff training
We train your team on operation. Proper use from day one.
Expert guidance
We help you choose the right equipment for your needs and budget.

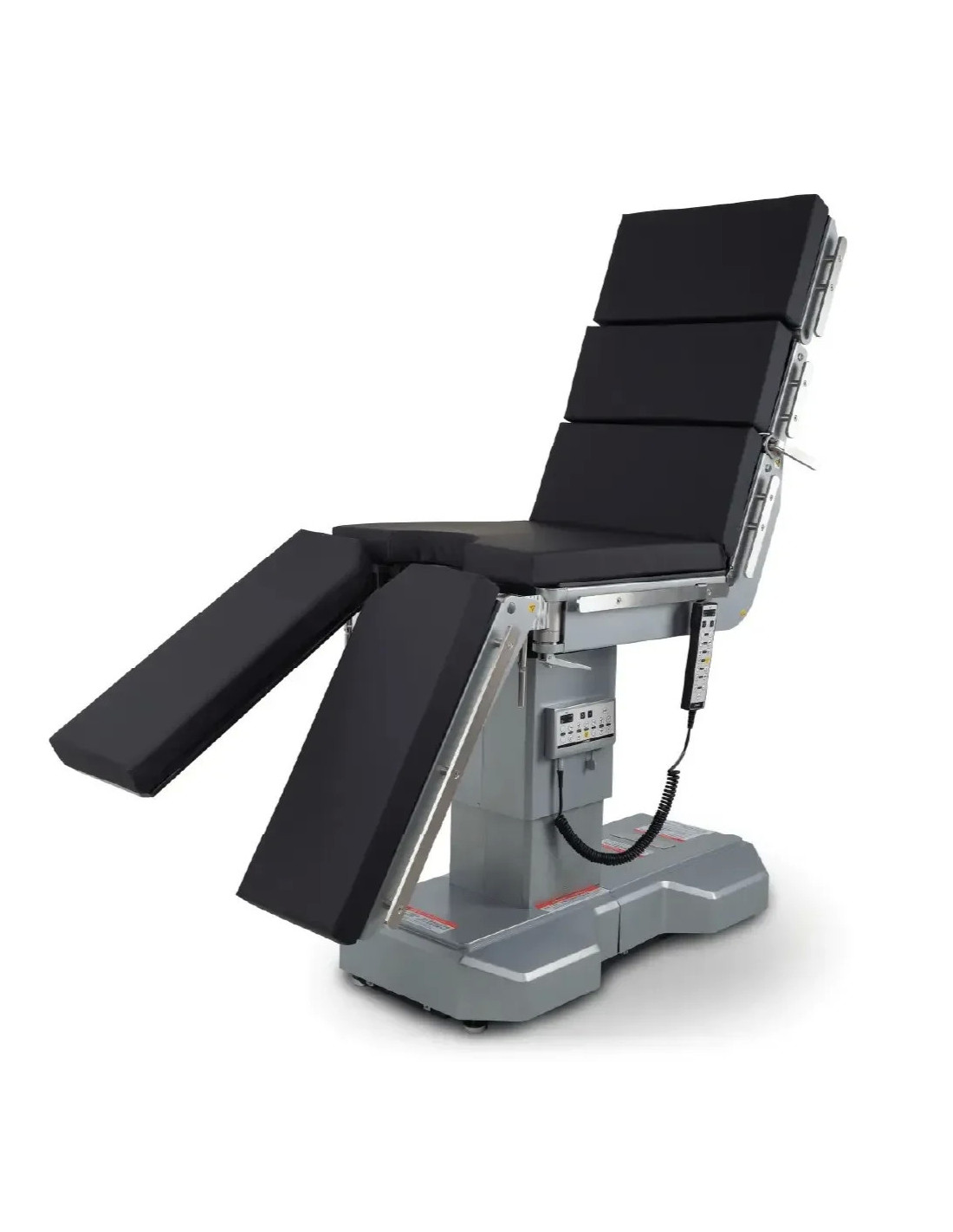

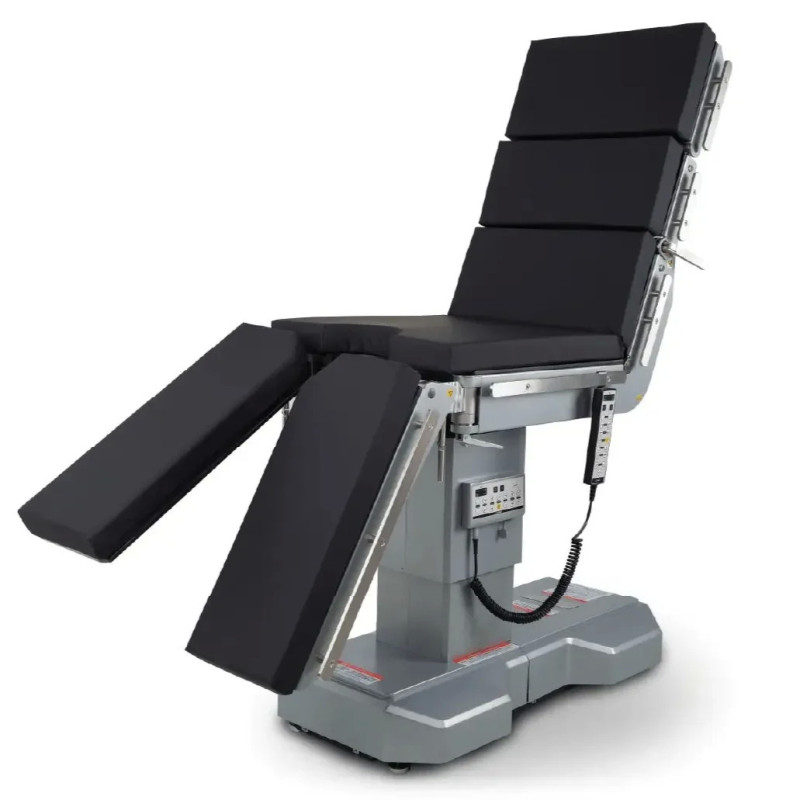

The modular design of the W5 is a major feature, with an emphasis on the expandability of the operating table in order to meet a variety of clinical needs and solve the problem of special posture requirements under different surgical settings.
The plates made of hexakis (methoxymethyl) melamine are able to meet the needs for most orthopedic surgeries, while also achieving an X-ray filtration of < 1mmAL.
When it comes to quality, we do not compromise. The W5 uses high-quality Grade 304 Stainless Steel that is further treated to provide the entire frame with greater strength and resistance to corrosion.
Understanding that the weight limitations of leg plates are a drawback in most operating tables, our R&D team brings to you upgraded leg plates that are able to withstand up to 60kg. An alarm is automatically activated if this weight threshold is exceeded.
Things can get messy and hectic in the operating room, so in order to avoid any accidents, the W5 is equipped with a safety feature that ensures that the system automatically locks itself after 60 seconds of idle time.
The W5 utilizes Electro-hydraulic technology to provide high weight-bearing capacity to the operating table without compromising on ergonomics. It moves fluidly and quietly, while retaining flexibility and durability.
Maintaining an orderly and mess-free operating environment is crucial to work efficiency in ORs. To relieve medical staff of this unnecessary workload, our unique pipeline manager serves as an effective way to organize and store wires or tubing connected to monitors or anesthesia machines.
In order to avoid pressure sores, the W5 is equipped with a 60mm antistatic memory mattress. The mattress is composed of waterproof and antistatic stretch cloth, low-density memory foam, high-density memory foam, and waterproof and antistatic synthetic fiber cloth.
Both the wired controller and the control panel on the table are always on standby. In the event where either one of these controllers malfunctions, our failsafe allows the other to continue functioning normally. The W5 also supports the integration of auxiliary control through the OR central control panel.
| Length | 2155mm+50mm |
|---|---|
| Upper back plate up | max75°+5° |
| Weight | 280kg±10kg |
| Upper back plate down | max45°+5° |
| Battery | 24V, 15Ah, Rechargeable |
| Back plate up | max80°+5° |
| Back plate down | max45°+5° |
| Width (excluding rails) | 680mm-980mm±50mm |
| Height (excluding mattresses) | Maximum height: 980mm ±50mm Minimum height: 680mm ±50mm |
| Leg plate up | max35°+5° |
| Leg plate down | max90°+5° |
| Leg plate outward angle | 0°~90°+5° |
| Lateral translation | Maximum 320mm±10mm |
| Lifting height | 0-300mm±10mm |
| Trendelenburg | max30°+5° |
| Bearing load | 250kg |
| Leg up/down | max30°+5° |
| Control function | Handheld tool, Side panel |
| Tilt left/right | max20°+5° |
| Forward buckling | 220°+5° |
| Head plate up | max60°+5° |
| Reverse buckling | 110°+5° |
| Head plate down | max90°+5° |
| Brake resistance | 200N |
Comen is a Chinese medical device manufacturer headquartered in Guangming District, Shenzhen.
Founded in 2002, the company has spent over two decades building its position as a leading provider of monitoring and diagnostic equipment.
Comen products are distributed in over 190 countries. The company operates its own branches in India, Thailand, the Philippines, Indonesia, France and Russia, ensuring local technical and service support in key markets.
Comen employs over 3,000 people, with approximately one-third working in research and development. Work on advanced specialist monitors began in 2007, with the first products reaching the market in 2009. The company holds nearly 600 patents. Notably, 40% of these were developed in collaboration with clinical experts and healthcare facilities – Comen actively involves the medical community in its product design process.
Comen's offering covers three main categories:
Comen solutions are used in intensive care units (ICU), operating rooms (OR), neonatal intensive care units (NICU), as well as outpatient clinics and practices.
